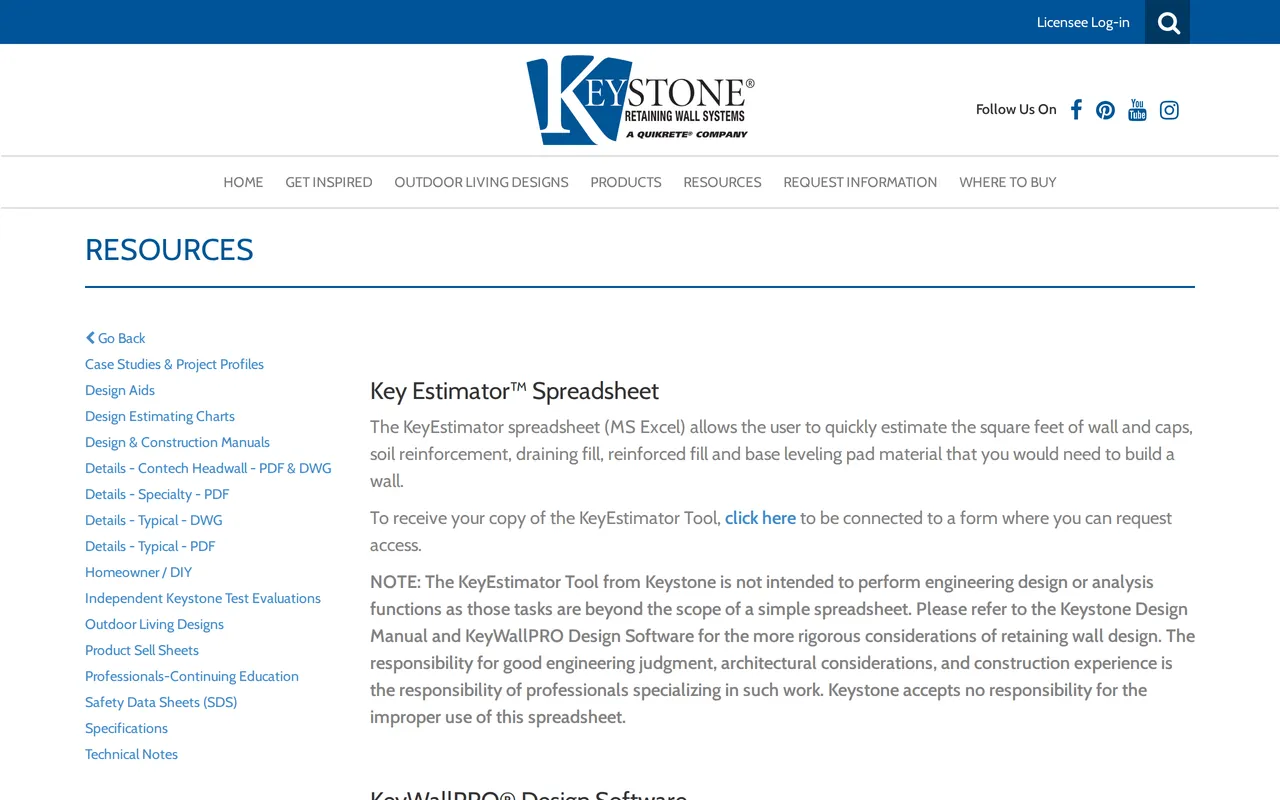

Keystone KeyWallPRO
Free, brand-lockedKeystone retaining wall design software
Free tier & pricing
Free desktop engineering software to design/analyze gravity and reinforced walls for Keystone units; Windows download and product-specific.
Last verified Jun 23, 2026. Report a change →
The short answer
Engineering-grade desktop software to design and analyze gravity and soil-reinforced retaining walls using Keystone structural units, with CAD DXF export.
The facts
- Pricing
- Free · Free, brand-locked
- Free tier
- Yes
- Runs in browser
- No
- Platforms
- Windows
- 2D / 3D
- No 3D
- Learning curve
- Moderate
- Export formats
- DXF
The catch
- Desktop install only — no browser version.
- Designs only with this brand’s own catalog.
Best for
Engineers designing Keystone walls
Keystone KeyWallPRO: questions, answered
Is Keystone KeyWallPRO free?
Keystone KeyWallPRO is free, but it only designs with one brand's own catalogue. Free desktop engineering software to design/analyze gravity and reinforced walls for Keystone units; Windows download and product-specific.
What platforms does Keystone KeyWallPRO run on?
Keystone KeyWallPRO is available on Windows. It is a desktop install with no browser version.
What file formats can you export from Keystone KeyWallPRO?
Keystone KeyWallPRO exports to DXF. That includes CAD formats, so you can hand files to a contractor or open them in AutoCAD.
Is Keystone KeyWallPRO easy to learn?
Moderate to pick up. Engineers designing Keystone walls
