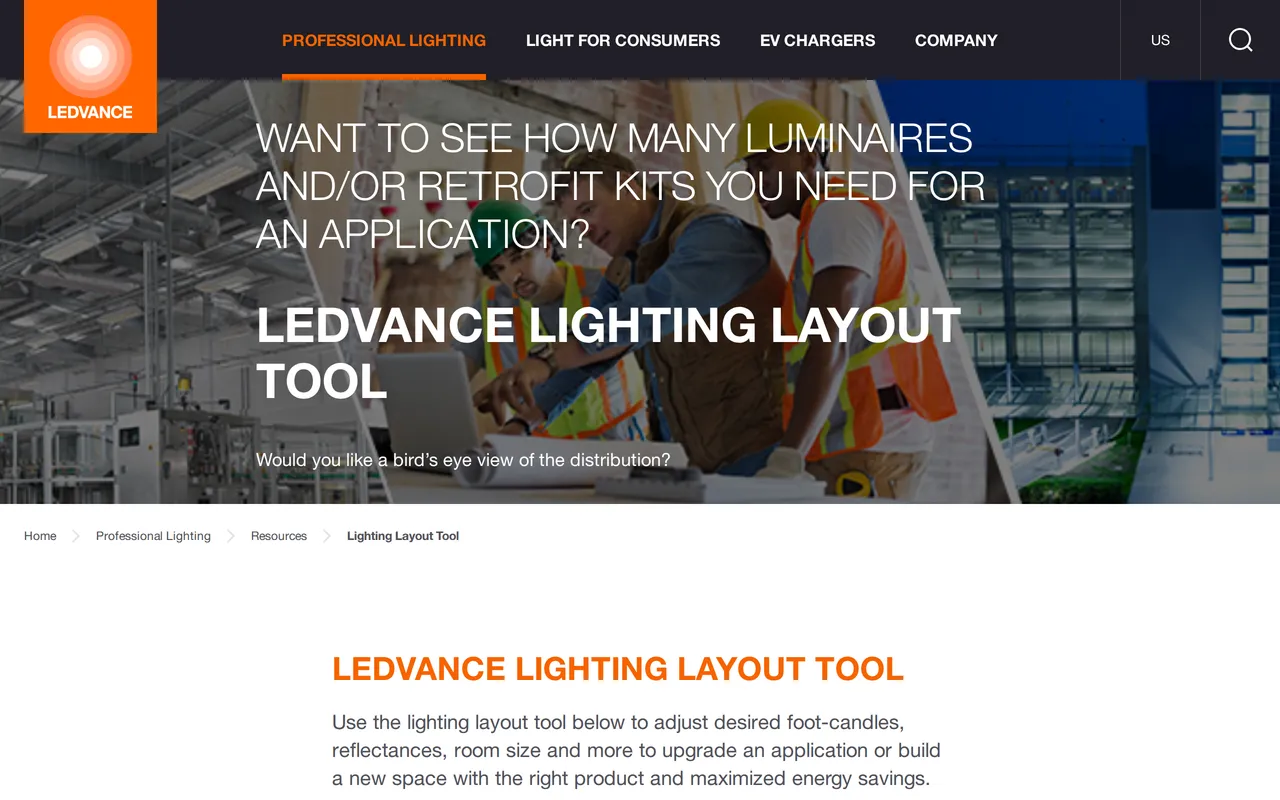

LEDVANCE Lighting Layout Tool
Free, brand-lockedFree foot-candle layout planner
Free tier & pricing
Free web tool to set target foot-candles, room size and reflectances and get a fixture distribution; only LEDVANCE luminaires.
Last verified Jun 23, 2026. Report a change →
The short answer
Browser tool that produces a top-down fixture distribution for a target illuminance using LEDVANCE indoor and outdoor product series.
The facts
- Pricing
- Free · Free, brand-locked
- Free tier
- Yes
- Runs in browser
- Yes
- Platforms
- Web
- 2D / 3D
- Basic 3D
- Learning curve
- Moderate
- Export formats
- —
The catch
- Browser only — no offline app.
- Designs only with this brand’s own catalog.
Best for
Quick LEDVANCE fixture layouts
LEDVANCE Lighting Layout Tool: questions, answered
Is LEDVANCE Lighting Layout Tool free?
LEDVANCE Lighting Layout Tool is free, but it only designs with one brand's own catalogue. Free web tool to set target foot-candles, room size and reflectances and get a fixture distribution; only LEDVANCE luminaires.
What platforms does LEDVANCE Lighting Layout Tool run on?
LEDVANCE Lighting Layout Tool is available on Web. It runs in any web browser with nothing to install.
Does LEDVANCE Lighting Layout Tool do 3D and photorealistic renders?
LEDVANCE Lighting Layout Tool supports 3D with basic 3d render quality. For fully photorealistic output you may want a heavier tool.
Is LEDVANCE Lighting Layout Tool easy to learn?
Moderate to pick up. Quick LEDVANCE fixture layouts
